Name: Automatic Touchless Car Washing Machine
Brand: Shanghai Kuolong Cleaning Machinery Co.，Ltd.
SKU: KL360-1
Price: 16,000.00 USD
Availability: InStock

Home > Products > Touchless Car Wash Machine >

Automatic Touchless Car Washing Machine

Labor Saving Touchless Car Washing Machine

Place of Origin:

Shanghai,China

Brand Name:

Kolon

Certification:

Model Number:

KL360-1

Request A Quote

Product Details

Product Name:

Labor-saving Automatic Touchless / Contactless / Touch-free Car Washing Machine KL-360-1

Dimensions (length * Width * Height):

6.2*3.6*3M

Foundation (length * Width * Height):

7*3.7.*3.1M

Cleaning Speed:

2-3min/car

Air Pressure:

8 BAR

Wire Requirements:

3 Phase 5 Cores, 16 Sqm Copper Wire

Power Requirement:

380v/20Kw

Water Comsumption:

150L/car

Total Weight Of Equipment:

1600Kg

Washing Time:

3-8mins/car

Type:

Touchless Automatic Car Washing Machine,Pre-Soak,High-Pressure Rinse,Detergent Application,High-Pressure Wash,Spot-Free Rinse,Drying

Material:

Import Components,Hot-dip Galvanizing

Color:

Customer's Request, Blue, Yellow Blue Purple RED, Pictured Or Custom Color, Yellow

Usage:

High-Pressure Water Jets,Pre-Soak And Detergent Application,Water Recycling System,User-Friendly Controls,Self-Service Capabilities

Feature:

Maintenance And Cleaning,Time-Saving,Convenience,Environmental Considerations,Safety,Versatility

Application:

Commercial Car Wash Businesses,Gas Stations And Convenience Stores,Self-Service Car Wash Facilities,Car Rental Companies,esidential Use

Highlight:

Automatic Touchless Car Washing Machine

Labor Saving Touchless Car Washing Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD14000-USD18000

Packaging Details

WOODEN CASE

Delivery Time

30DAYS

Payment Terms

T/T,L/C

Supply Ability

10000PCS

Open the PDF of Dimension KOLON KL360-1 dimension drawing.pdf

Labor-saving automatic touchless car washing machine

Automatic Touchless Car Washing Machine 0

Dimension drawing

Automatic Touchless Car Washing Machine 1

Touchless Car Washing Machine Description :

A ttouchless / contactless / touch-free car washing machine is a type of automated car wash system that cleans vehicles without the use of brushes or physical contact with the car's surface. It relies on high-pressure water jets, detergents, and specialized cleaning techniques to remove dirt, grime, and other contaminants from the car's exterior.

Touchless Car Washing Machine Features:

High-pressure water jets: Powerful jets of water are used to dislodge and remove dirt and debris from the car's surface.
Detergent application: Specialized detergents are applied to help break down and remove tough stains and grime.
Multiple wash programs: Touchless car wash machines often offer various wash programs and settings to cater to different levels of cleaning required.
Water recycling system (optional): Some machines incorporate water recycling systems to conserve water and reduce environmental impact.

Specification:

Warranty	3 years, man-made damage excluded
Machine Size	6.23.63M(LWH)
Foundation Size:	73.7.3.1M(LWH)
Site Requirements	Ground hardening
Proportioning machine size	800500500mm (LWH)
Wire requirements	3 phase 5 cores, 16 sqm copper wire
Air pressure	8 BAR
Max washing height	2000(mm)
Max washing width	2200mm
Max washing length	5500mm
Power needed	380V/20KW
Running power	Air-dry power 12KW (4PCS*3KW) Siemens motor
Running power	Water pump (Pinfl 45+15Kw )
Water Consumption	150L/car
Washing Time	3-8mins/car
Power Consumption	0.5-1kwh/car
Machine weight	1600Kg
Total Power	30Kw
Washing liquid Consumption	50ml/car
Water wax consumption	500-1000ml ,Controllable
Applicable vehicle type	car,van,commercial vehicle
Water pressure requirements	1.4-3kgs tap-water pressure; 6-minute diameter water pipe flow >40L/min
Rail	2pcs (6m)
Framework	1 set
Washing pressure	60-80KGS
Standard car wash mode	●
Washing Quantity count	●
Fine car Wash Mode	●
Operation permission setting	●
Fully automatic car wash mode	●
Fault self-test function	●
LED indicating system	●
Mirror cleaning	○
Automatic liquid proportioning system	●
One click antifreeze system	○
Chassis tire washing function	●
Oil free function	●
Intelligent three-dimensional detection system	○
Multi liquid reuse function	●
Self-guided parking system	●
Safety alarm function	●
Digital safety anti-collision system	●
Automatic standby function	●
360 degrees rotary washing	●
Hot dip galvanized frame	●
Washing Detergent	●
Operation console	●
Highlight and dazzle color system (dazzle color type)	○
Leakage protector	●
Water wax coated function	●
Warning system	○
Magic Color Shampoo	●
Voice warning system	○
Built-in automatic air drying	●
Soft water spray	○
Controller	●
Function Equipped	Chassis washing
	Wheel washing
	Touchless high-pressure washing
	High precision low foam water wax 2-in-1 ratio function
	Powerful air drying

Products Description:

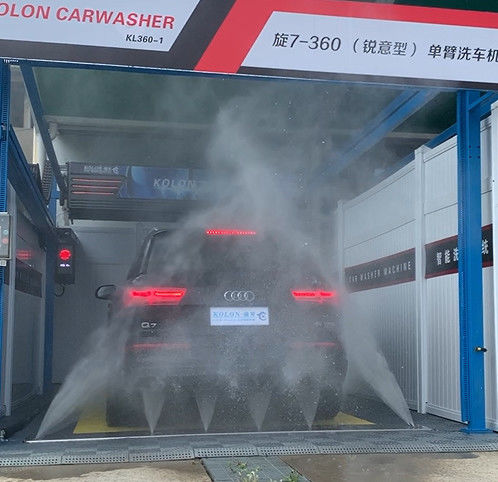

High Pressure water spray removes the dirt and muds on the chassis and wheels of the vehicle.

***Chassis and wheel washing

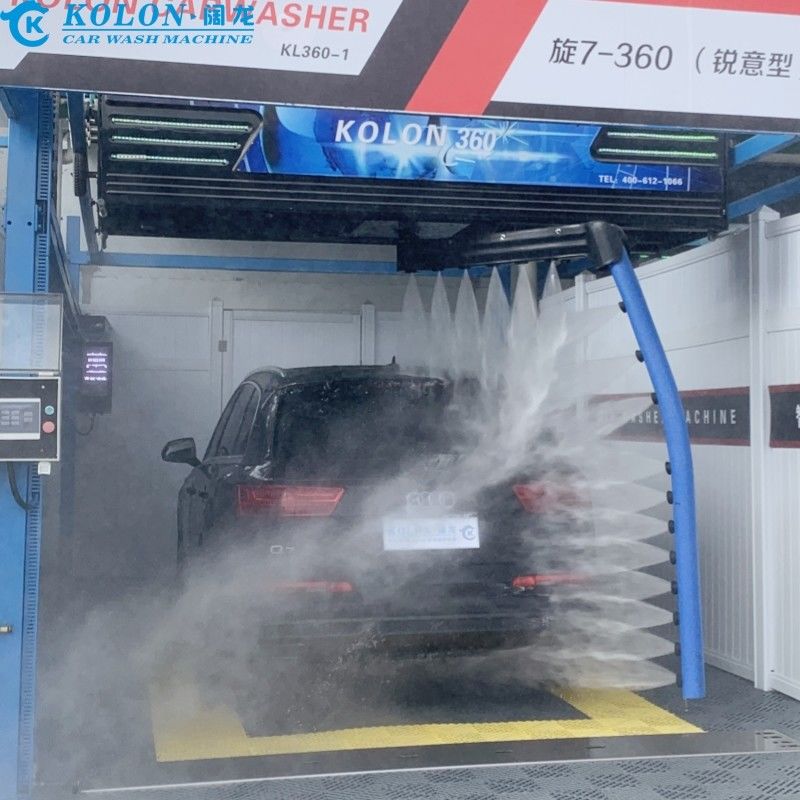

***360°high pressure washing

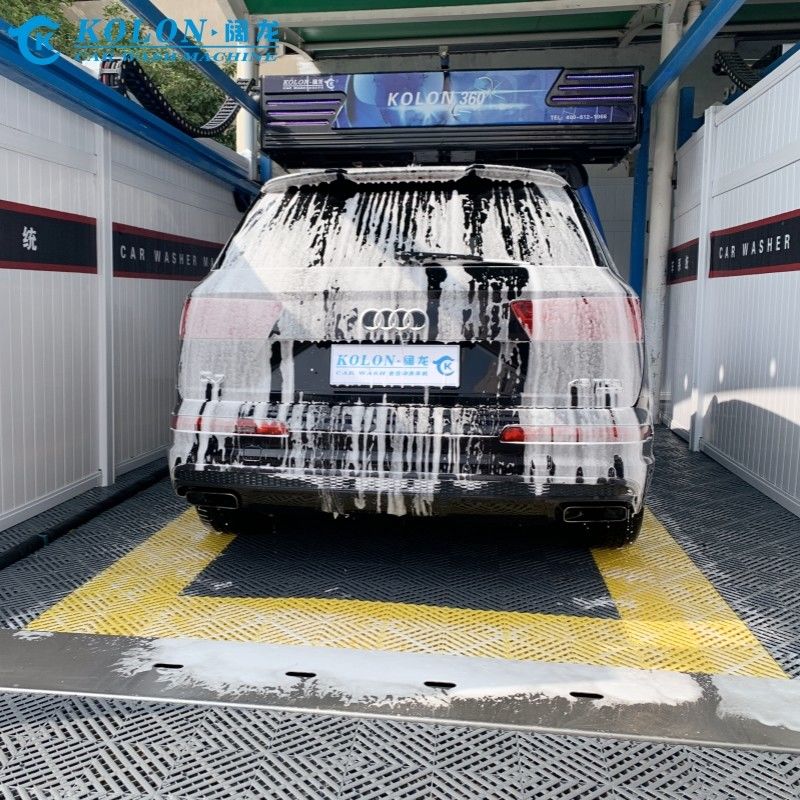

***Washing liquid spraying

***Wax spraying

Automatic Touchless Car Washing Machine 1

Details:

Air-dry power

12KW (4PCS*3KW) Siemens motor

Built-in fast air drying system, strong wind drive away the body moisture, realize the true sense of automatic cleaning.

KL360-1 water pump 15kw

Automatic Touchless Car Washing Machine 3

Automatic Touchless Car Washing Machine 7

Touchless Car Washing Machine Benefits:

Gentle on car paint and finish: Since there are no brushes or physical contact, touchless car washing machines minimize the risk of scratches or damage to the car's paint and finish.
Efficient and time-saving: Touchless car washes are typically faster compared to traditional methods, reducing the time required to clean a vehicle.
Consistent and thorough cleaning: The high-pressure water jets can reach and clean areas that are difficult to access manually, ensuring a more thorough cleaning.

Product packaging

3 years warranty low price auto cleaning equipment car washing machine with Chassis wash function for africa market Packaging Show:

Automatic Touchless Car Washing Machine 8

FAQ

Q: Are your car wash machine trader or manufacturer?

A: Yes, we are the car wash machines manufacturer in china. Our brand is Kolonwash. So we have the competitive price, and could provide the spare parts at any time.

Q: What types car wash machines can you produce?

A: We can produce the rollover car wash machine, tunnel car wash machine, touchless car wash machine. Besides, could be customized according to your request.

Q: Can the color and appearance be customized?

A: Yes, of course, they could be customized, just tell me what color you need, and the drawing of the appearance, we could do according to your request.

Q: Can I put my brand name on machine instead of your brand name?

A: Yes, we could stick your brand name on the machines according to your request.

Q: What is the delivery time?

A: Our lead time is 10-15 days once get the advanced payment , according to which type you need.

Q: What about the foundation? How long will it take?

A: We could provide the drawing of the foundation, it needs around 5 days.

Q: How to install the machine? And how to do daily maintenance?

A: We could provide the installation drawing and guided installation video. We could provide the maintenance manual to you.

Q: How about the warranty time and sales-after service?

A: Our machine warranty time: 3 years ( 50000 times ), in warranty time, if the machine have any question, we could provide the parts free of charge.

Q: How to contact you?

A:WhatsApp/Mb.:+86-18964350873 Email:zoe@koloncarwashing.com:+86-17765180874( WhatsApp,Wechat) cici@koloncarwashing.com
